Cartridge Filters

Cartridge Filter
Cartridge Filters Completely removes oil, Water & dirt from compressed air & other gases.
It remove 99.999% of 0.01 Micron size particles of oil, water & dirt continuously.

Nutsche Filter
nutsche filterWe offer efficient nutsche filters for liquid / solid separation in a completely non-metallic environment. The entire unit is mounted on four legs with castor wheel for easy mobility. Our Nutsche Filter provides superior corrosion resistance and permits the handling of virtually all acids and salts at a very high temperature. The filter surface eliminates contamination to increase product purity and allows an easy, fast and thorough cleaning.

Specifications:
• Available in SS304 / SS316 / MS / Rubber Lined / PP/FRP / Hastelloy C contact parts
• Available sizes: 20", 25", 30", 40", & 50" Dia. or
even rectangular as per requirement
 Pressure Sand Filter
Pressure sand filter is used for the removal of suspended solids & turbidity. The pressure sand filter is extremely robust method of removing suspended solids from water. The filtration medium comprises of multiple layers of sand having different sizes. As per the needs of our customers, we can offer sand filters in various sizes and material apart from hand operated or fully automatically operated.

How it works?
 Raw water is passed through sand filter at a pressure of 2 - 3.5 kg / cm2.This reduces the
   suspended solids that are present in the raw water
 This filter has the ability to remove up to 30 to 50 micron of suspended solids to less than
    5 ppm
 It is mandatory to wash the filter daily with raw water for 20 to 30 minutes
 For the filtration of partials below 30 to 50 micron, the cartridge filter is used
 They are manufactured in mild steel, stainless steel, FRP, MS/RL etc.
Pressure Sand Filter

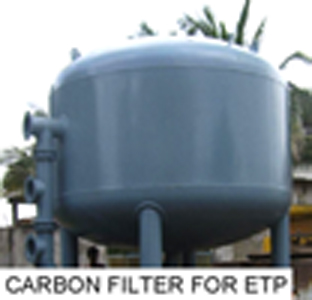

 Activated Carbon Filter
Activated Carbon Filter
 The Activated Carbon Filters are manufactured in MS / SS / FRP / MS/RL etc. They contain a perforated plate at bottom with layers of Activated Carbon. When the fluid passes through the Activated carbon bed, the odor / smell is retained by the carbon and odorless fluid passes through. When the carbon bed gets saturated, it is replaced with new one.




The Activated Carbon Filter finds applications in

• Pharmaceutical industry
• Dairy & food products
• Beverages
• Package drinking water
• Cosmetics
• Thermal power plants
• Agriculture etc.
