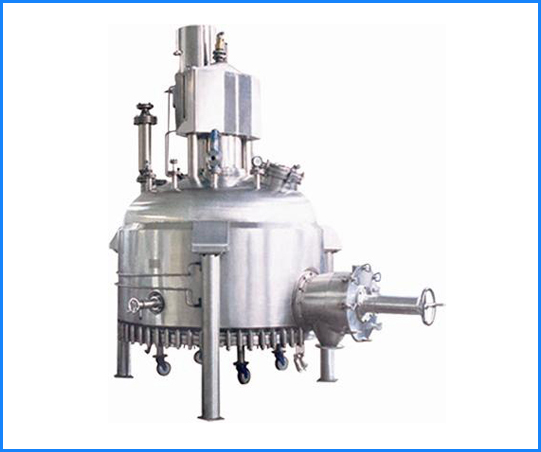

Nutsche Filter |
|
|
 |
|
We offer efficient nutsche filters for liquid / solid separation in a completely non-metallic environment. The entire unit is mounted on four legs with castor wheel for easy mobility. Our Nutsche Filter provides superior corrosion resistance and permits the handling of virtually all acids and salts at a very high temperature. The filter surface eliminates contamination to increase product purity and allows an easy, fast and thorough cleaning.
Specifications:
• Available in SS304 / SS316 / MS / Rubber Lined / PP/FRP / Hastelloy C contact parts
• Available sizes: 20", 25", 30", 40", & 50" Dia. or even rectangular as per requirement
|

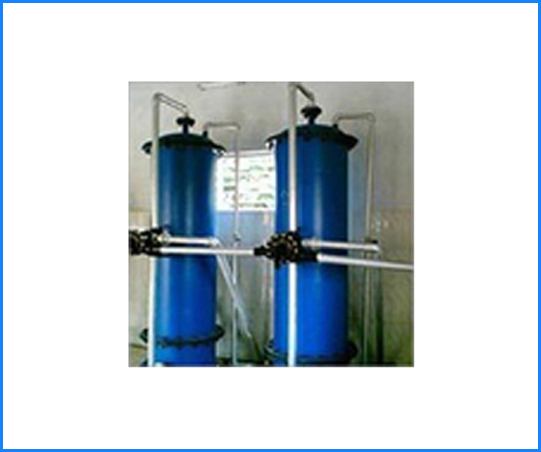

| Pressure Sand Filter |
Pressure sand filter is used for the removal of suspended solids & turbidity. The pressure sand filter is extremely robust method of removing suspended solids from water. The filtration medium comprises of multiple layers of sand having different sizes. As per the needs of our customers, we can offer sand filters in various sizes and material apart from hand operated or fully automatically operated.
How it works?
 Raw water is passed through sand filter at a pressure of 2 - 3.5 kg / cm2. This reduces the suspended solids that are present in the raw water
This filter has the ability to remove up to 30 to 50 micron of suspended solids to
less then 5 ppm
It is mandatory to wash the filter daily with raw water for 20 to 30 minutes
For the filtration of partials below 30 to 50 micron, the cartridge filter is used
They are manufactured in mild steel, stainless steel, FRP, MS/RL etc. |
 |
| |

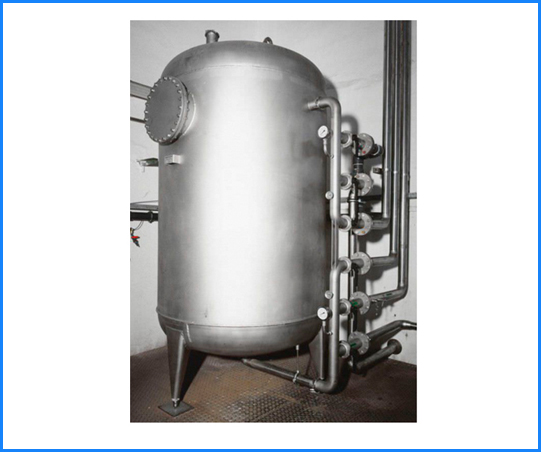

| Activated Carbon Filter |
The Activated Carbon Filters are manufactured in MS / SS / FRP / MS/RL etc. They contain a perforated plate at bottom with layers of Activated Carbon. When the fluid passes through the Activated carbon bed, the odor / smell is retained by the carbon and odorless fluid passes through. When the carbon bed gets saturated, it is replaced with new one. The Activated Carbon Filter finds applications in
Pharmaceutical industry
Dairy & food products
Beverages
Package drinking water
Cosmetics
Thermal power plants
Agriculture etc. |
|
